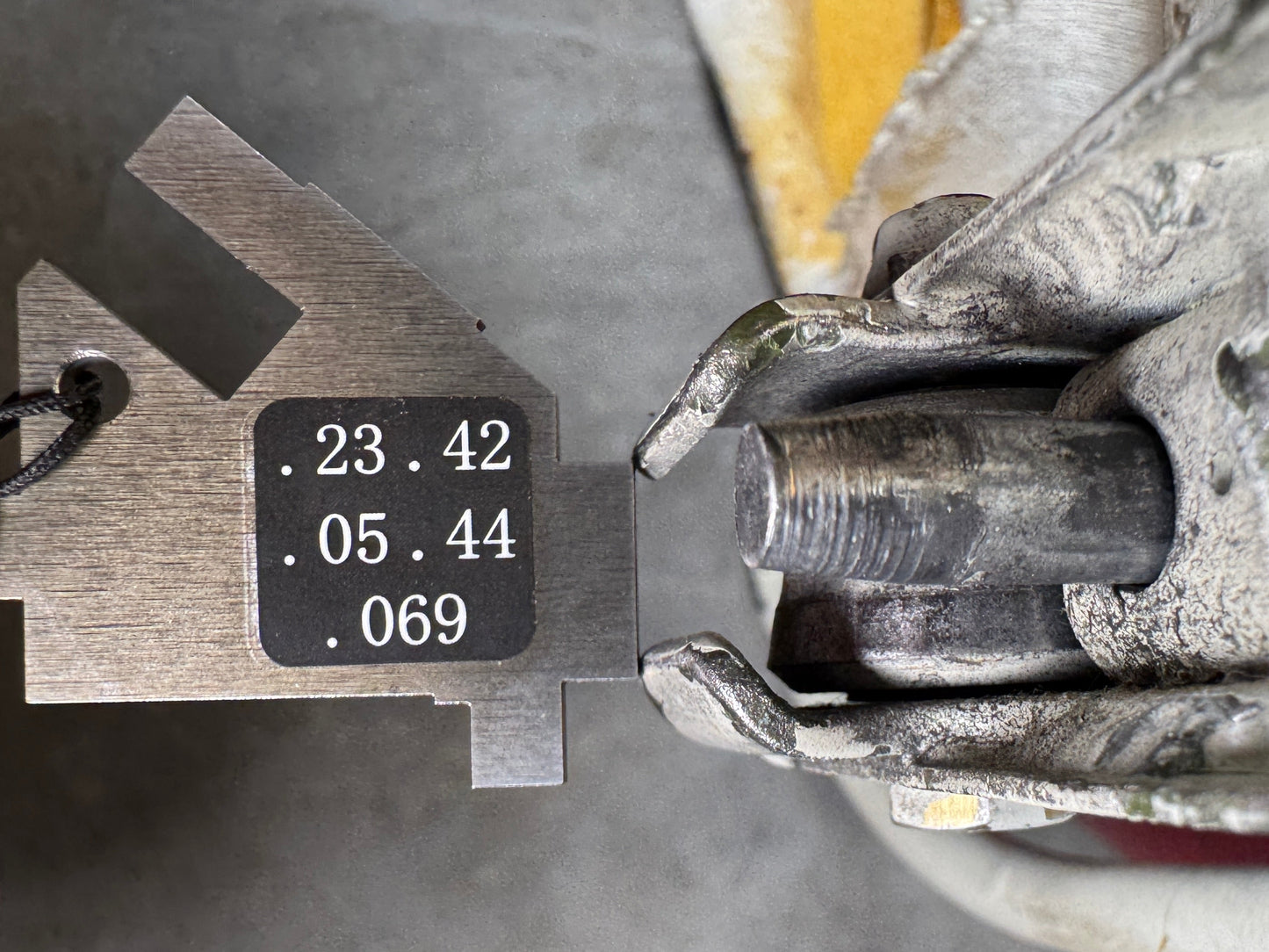

Cessna Seat Rail Wear Inspection Tool for AD 2011-10-09 T001

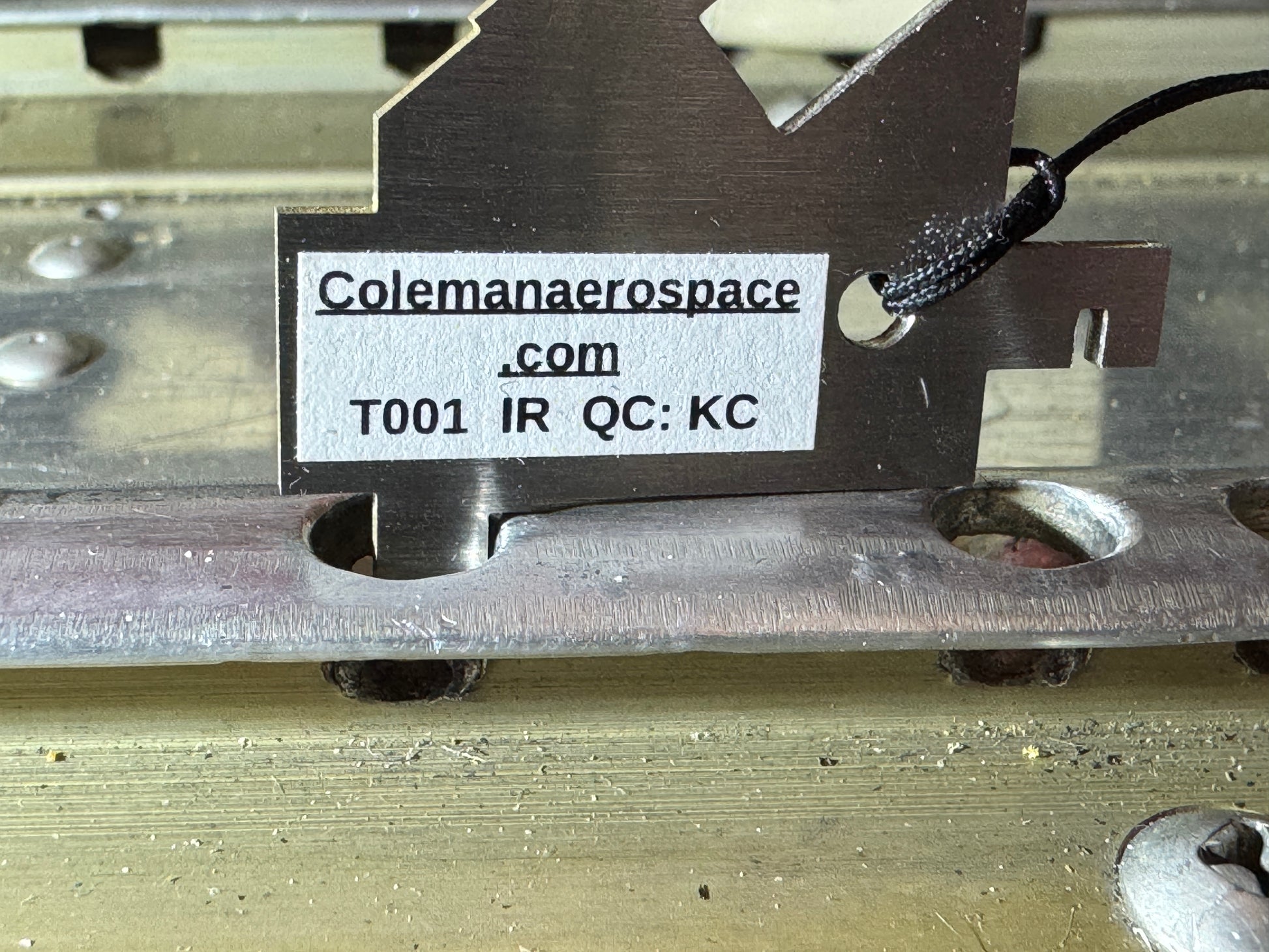

Coleman Aero’s T001 inspection tool reduces inspection time and complexity of Cessna seat and seat rails per AD 2011-10-09. Unlike single-dimension tools on the market, T001 inspects 3 critical dimensions required by the airworthiness directive. This tool also costs significantly less than comparable multi-dimension tools. Whether you complete one inspection per year or maintain many aircraft, this tool will save you time.

Benefits and features:

• Faster turnaround for mechanics
• Lower inspection costs for owner/operators
• Hardened steel construction for repeated use
• Excellent edge finish and tight dimensional tolerance
• Dimensions clearly identified on the tool
• Includes comprehensive instructions and lanyard
• Two additional reference dimensions on tool

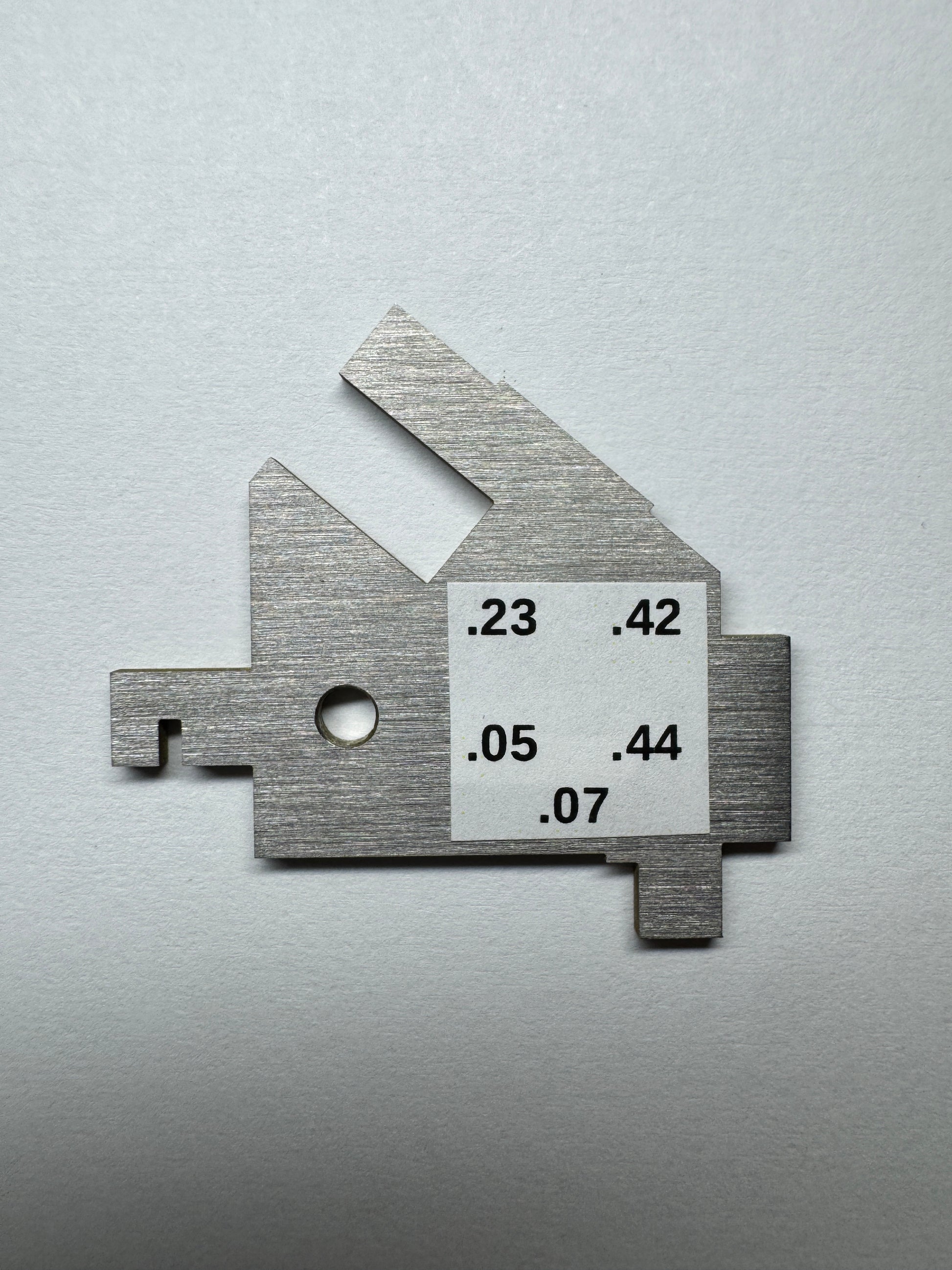

Critical Dimensions:

• Tang thickness: 0.050”
• Tang length: 0.23”
• Seat rail pin locking engagement hole diameter: 0.42” at 0.020” wear depth and radius of wear 0.069” (reference)
• Tang gap width: 0.44” (reference)

Applicable Models: Cessna 150, Cessna 152, Cessna 170, Cessna 172, Cessna 175, Cessna 177, Cessna 180, Cessna 182, Cessna 185, Cessna 188, Cessna 190, Cessna 195, Cessna 206, Cessna 207, Cessna 210, Cessna T303, Cessna 336, Cessna 337

Always refer to the most current revision of AD 2011-10-09 published by the FAA.
